System 3R are renowned for their Precision Range of Workholding Devices for both Electrical Discharge Machines ( EDM ) and Wire Electrical Discharge Machines ( WEDM ). The range of tooling and options available are exemplary just like the precision manufactured into each and every piece.

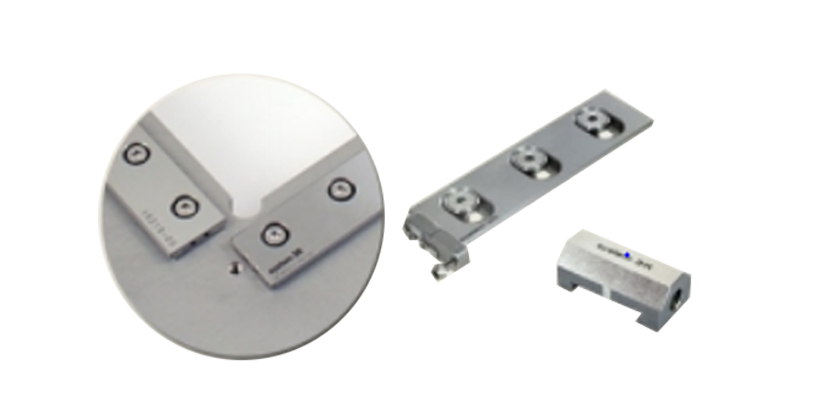

WEDM
Three steps to success
Mounting
First of all, the workpiece needs to be positioned and secured in the working area of the machine, preferably on the zero line, and with risk of collision with the machine’s wire guides reduced to a minimum. And so firmly that it can handle the high flushing pressures of modern machines.
Automation
With a reference system and a pneumatic chuck on the machine table, you have laid a firm foundation for the crucial step towards maximised machine utilisation – Automation Add a pallet changer to your machine and you have created an Automated production cell. A cell that can generate revenue 24 hours a day, weekdays and weekends, all year round!
Reference System
Once the problem of effective mounting of the workpiece in the machine has been solved, the next step is to minimise downtimes when retooling the machine. Technical developments of the machines in recent years have resulted in significantly higher material removal rates. But you won’t benefit from this potential of tie machine is idle for lengthy, troublesome retooling. So the aim must be to minimise retooling times with the machine idle. With a reference system you can prepare and preset the workpiece away from the machine, then lift it in and secure it in the machine – quickly and precisely – with minimised downtime and consequent better utilisation of machine capacity.
